AJAX Automation Wall LightSwitch(1 Gang)
Product code: 25074120 // MPN: 45110.142.NC // EAN: 4823114023309
Ajax Automation Wall LightSwitch(1 Gang)
Similar product
LightSwitch combines the reliability of professional security systems and a thoughtful user experience. The smart switch from Ajax has a large touch-sensitive panel that can be activated both by tap and contactless – just put your hand less than 15 mm close. A soft backlight helps do this in the dark. it's easy to turn on lights and floor lamps. control curtains or blinds. does not require a neutral wire and connects to the security system by scanning a QR code. The settings in the app allow you to turn on the lights by schedule. when disarming the security system or in response to an alarm. The switch is available in eight colours. two-gang and two-way versions.
- Frequency bands: 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
- Maximum effective radiated power (ERP): Up to 20 mW
- Radio signal modulation: GFSK
- Radio communication range: up to 1,100 m
- Encrypted radio communication: All the data stored and transmitted are protected by block encryption with a dynamic key
- Scenarios: reaction to alarm / reaction to security mode change / activation by schedule / reaction to pressing another LightSwitch

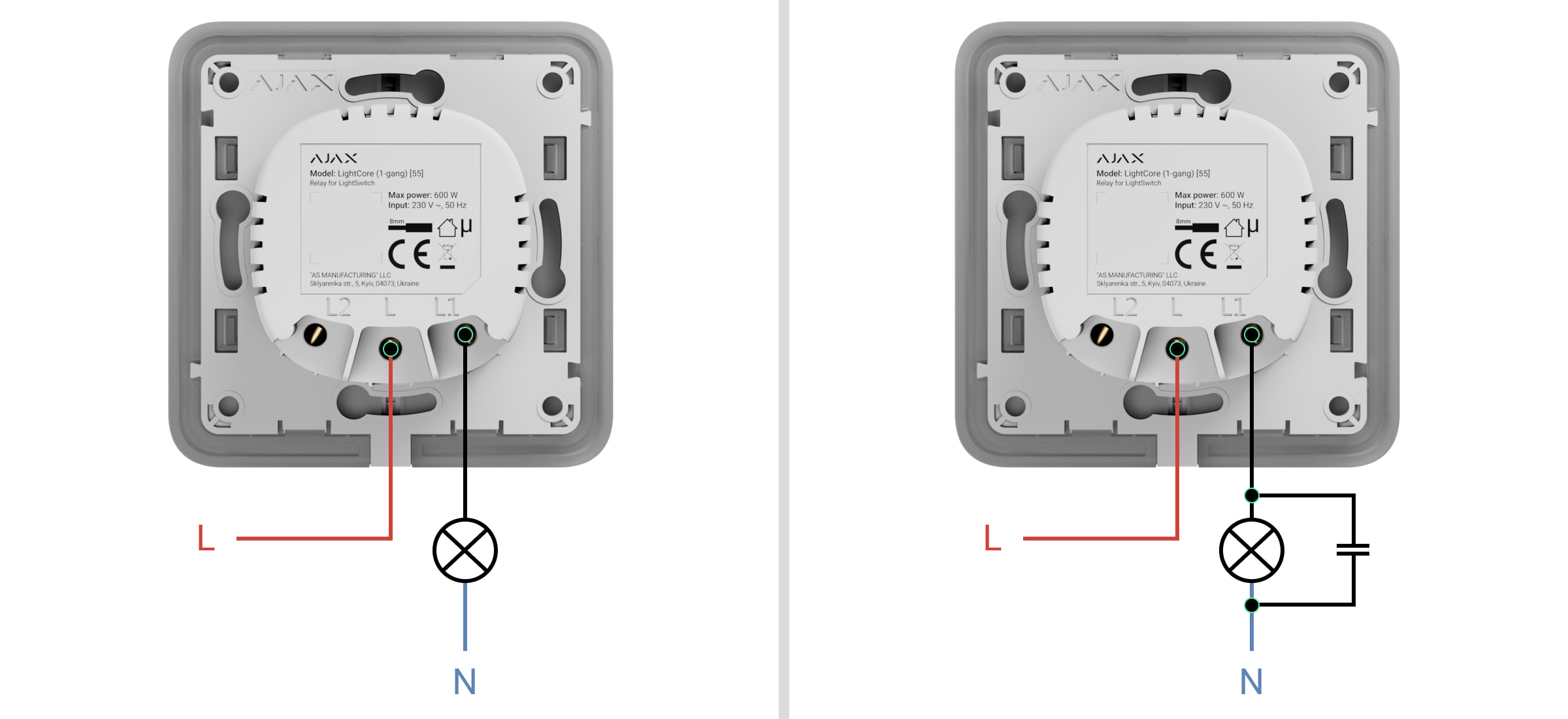

- Operation without neutral wire: LightSwitch only needs a live wire to operate
- Power of switched device: from 5 to 600 W
- Contactless touch panel: LightSwitch is activated when a hand gets as close as 15 mm from the panel
- Night backlight: Optional, can be turned off in the Ajax app device settings
- Protection against spoofing: device authentication
- Communication loss detection: from 36 seconds
- Power supply voltage: 230 V, 50 Hz
- Average consumption: up to 200 mW
- Maximum power: 600 W
- Current protection: more than 2.6 A, If protection is triggered, LightSwitch turns off power and sends a notification to Ajax apps
- Temperature protection: more than +60°C. If protection is triggered, LightSwitch turns off power and sends a notification to Ajax apps
- Operating temperature range: from –10°C to +40°C
- Operating humidity: Up to 75% with no condensation
- Protection class: IP20
- Form factor of the switch: European type (55)
- Relay: LightCore (1-gang) — 45.95 g
- Frames: Frame (2 seats) — 16.13 g
