PC CASE

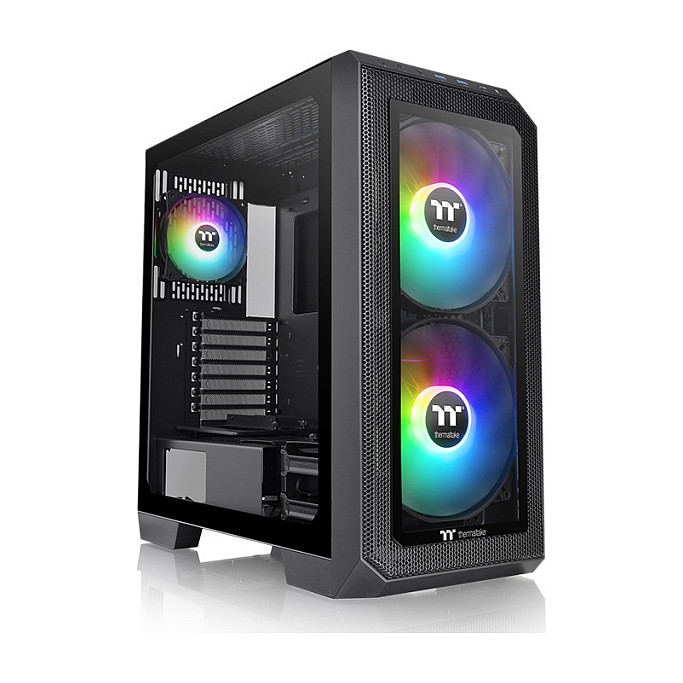

View 300 MX
Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan for Massive Airflow

Choose your style with dual front panels!
Designed to push the beloved View Series lineup to another level, the View 300 MX Mid-Tower Chassis features two pre-installed 200mm ARGB PWM fans in the front and one 120mm ARGB PWM fan at the rear to provide optimal cooling performance. Noteworthy, the View 300 MX series is the first chassis of the Thermaltake collection that comes with dual front panels, including a tempered glass panel and a perforated metal panel featuring the TT Logo, allowing users to choose their own style. Moreover, the View 300 MX features rotational PCI-E Slots, removable filters, a removable PSU cover, and supports up to E-ATX motherboards (12” x 13”), up to a 360mm Radiator on the front, top and M/B side. These merits make the View 300 MX an eye-catching chassis that is ideal for you to make your next build epic, high-performing, and one of a kind.

Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan
Two 200mm ARGB PWM fans and one 120mm ARGB PWM fan are pre-installed, efficiently moving a considerable amount of air through the chassis with minor noise thanks to the fan speed control and through the PWM function. Furthermore, the LED lighting effect can be manipulated with a physical button or motherboard supported software.

Choose from a Tempered Glass Mesh Panel or a Perforated TT logo Steel Panel
There are two front panels that come in the box: one tempered glass mesh panel for an outstanding look, and the other is a perforated steel panel with TT logo cutouts for better airflow. Two styles for users to choose, display your PC build the way you want.

Tempered Glass Window
The 4mm tempered glass panel on the side of the View 300 MX is thicker and more scratch resistant than standard acrylic. It enables you to display and admire all your components in their full RGB glory.

Patented Rotatable PCI-E Slots
Patented rotatable PCI-E slots allow vertical GPU installation. The design, compared with the more traditional 7+2 approach, has little limitation regarding the thickness of the graphics card. Additionally, the enclosed riser cable bracket helps to secure the riser cable at bay (supporting a 180° connector).

Excellent Dust Filtration
There are fine magnetic filters on the right, top, and at bottom to provide excellent protection against dirt and dust from the outside of the case and they are easily removable for cleaning.

Removable PSU Cover
To achieve a more tidy-looking system, the built-in PSU cover is designed to hide unsightly cables with overall good ventilation.

Air Intake and Exhaust
The cooling performance of the View 300 MX is fabulous thanks to two 200mm ARGB PWM fans and one 120mm ARGB PWM fan pre-installed. The Perforated TT logo Steel Panel allows optimal air intake, while the tempered glass mesh panel also provides sufficient air-intake through its mesh edge.

Massive Airflow & Amazing Performance
Thermal images were taken during thermal testing. Thanks to two pre-installed 200mm ARGB PWM fans in the front and one pre-installed 120mm ARGB PWM fan at the rear, we were able to ensure that the View 300 MX comes with massive airflow, which guarantees an amazing cooling performance that the interior temperature stays low and stable at all times.

Hardware Compatibility
View 300 MX has exceptional expandability. It can support E-ATX motherboards (12”x13”), a CPU cooler with a maximum height of 175mm, VGA clearance up to 400mm in length without a reservoir, and a power supply with a length of up to 200mm. Optimized for excellent cooling capabilities, the View 300 MX can house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator of up to 360mm at the front, top and MB side to allow users to build their desired high-end system.

Handy I/O Ports
For connectivity, View 300 MX is equipped with two USB 3.0, one USB 3.2 Gen 2 type-c, as well as a headphone and microphone jack.

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Design
Material: Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 4
Number of expansion slots: 7
Feature: Side window
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Feature: RGB control button
Maximum CPU cooler height: 17.5 cm
Maximum graphics card length: 40 cm
Maximum PSU length: 20 cm
Power supply
Supported power supply form factors: PS2
Ports & interfaces
Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 2x 200 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140,200 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140,200 mm
Front radiator sizes supported: 120,140,240,280,360 mm
Side radiator sizes supported: 120,240,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240,280,360 mm
Storage
Supported HDD sizes: 2.5,3.5"
SSD form factor: 2.5"
Packaging content
Feature: Manual
Weight & dimensions
Width: 230 mm
Depth: 506 mm
Height: 505 mm
Weight: 10.4 kg
