ACCESS POINTS

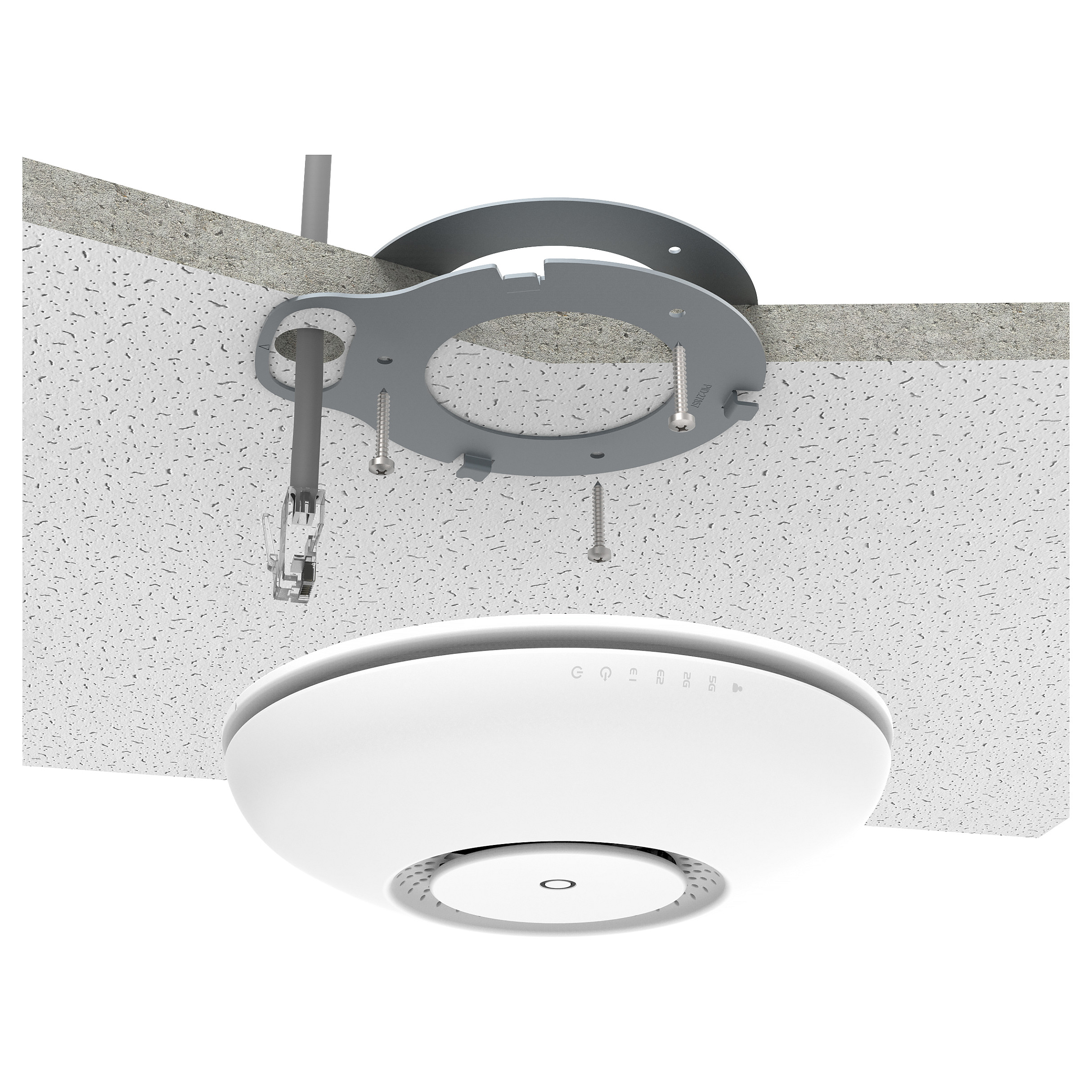

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.


Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 867 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.412 - 2.484, 5.15 - 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
DC voltage range: 17 - 57 V
Output voltage: 57 V
Power consumption (max): 13 W
Design
Placement: Ceiling, Wall
Product colour: White
LED indicators: Yes
Antenna
Antenna type: Internal
Antenna features: Integrated antenna
Antennas quantity: 4
Antenna gain level (max): 2.5 dBi
Performance
Feature: Built-in processor
Processor model: IPQ4018
Processor frequency: 716 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Operating system installed: RouterOS
Certificates
Certification: CE, FCC, IC, EAC, ROHS
Weight & dimensions
Width: 136 mm
Depth: 30 mm
Height: 136 mm
Packaging content
Feature: AC adapter included
Feature: PoE adapter included
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): -40 - 50 °C
Logistics data
Harmonized System (HS) code: 85176990
