AJAX VHF MultiTransmitter Wireless Integration
Product code: 25073420 // MPN: 25353.92.WH1 // EAN: 4823114005282
Ajax VHF MultiTransmitter Wireless Integration
Similar product

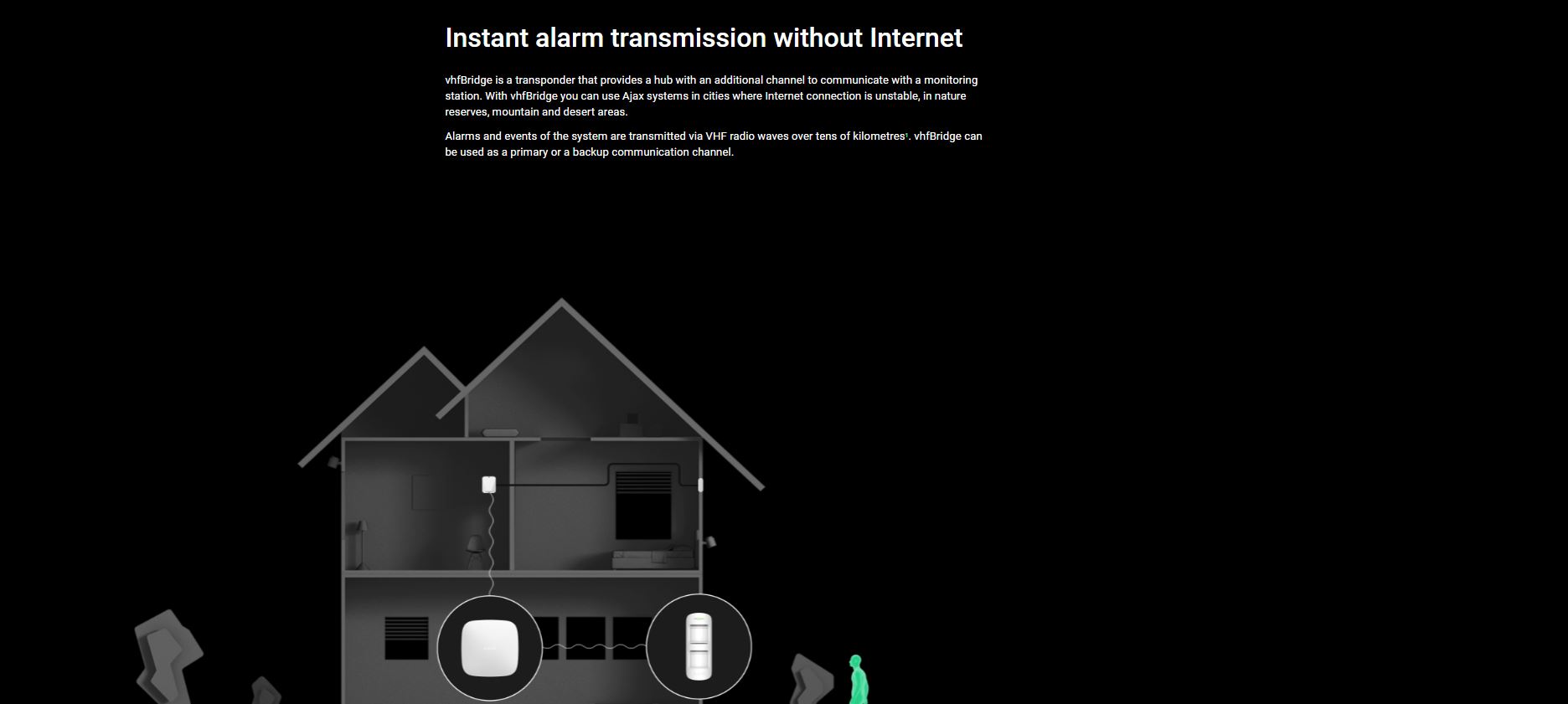

VHFBridge is a transponder that provides a hub with an additional channel to communicate with a monitoring station. With vhfBridge you can use Ajax systems in cities where Internet connection is unstable. mountain and desert areas. Alarms and events of the system are transmitted via VHF radio waves over tens of kilometres1. vhfBridge can be used as a primary or a backup communication channel. You can build in a 7 Ah backup battery inside a vhfBridge casing. It will feed a VHF transmitter with up to 2A current consumption. the transmitter doesn't need to have a separate battery. which makes maintenance less frequent. In case of a power outage at a facility. the transponder and the transmitter operate on a backup battery for up to 75 hours4 while still transmitting events to a central monitoring station. Similar to other Ajax devices. vhfBridge connects to a hub in the app by scanning a QR-code. The transponder casing has perforated areas for more organized wiring. Outputs are configurable with Ajax apps for smartphones and computers.
- Classification: Transponder for communication with the monitoring station via a VHF transmitter
- Installation: Indoors
- Number of potential outputs: 8
- Output types: Positive trip and negative trip (depends on the settings)
- Transmission types: Pulse and bistable (depends on the settings)

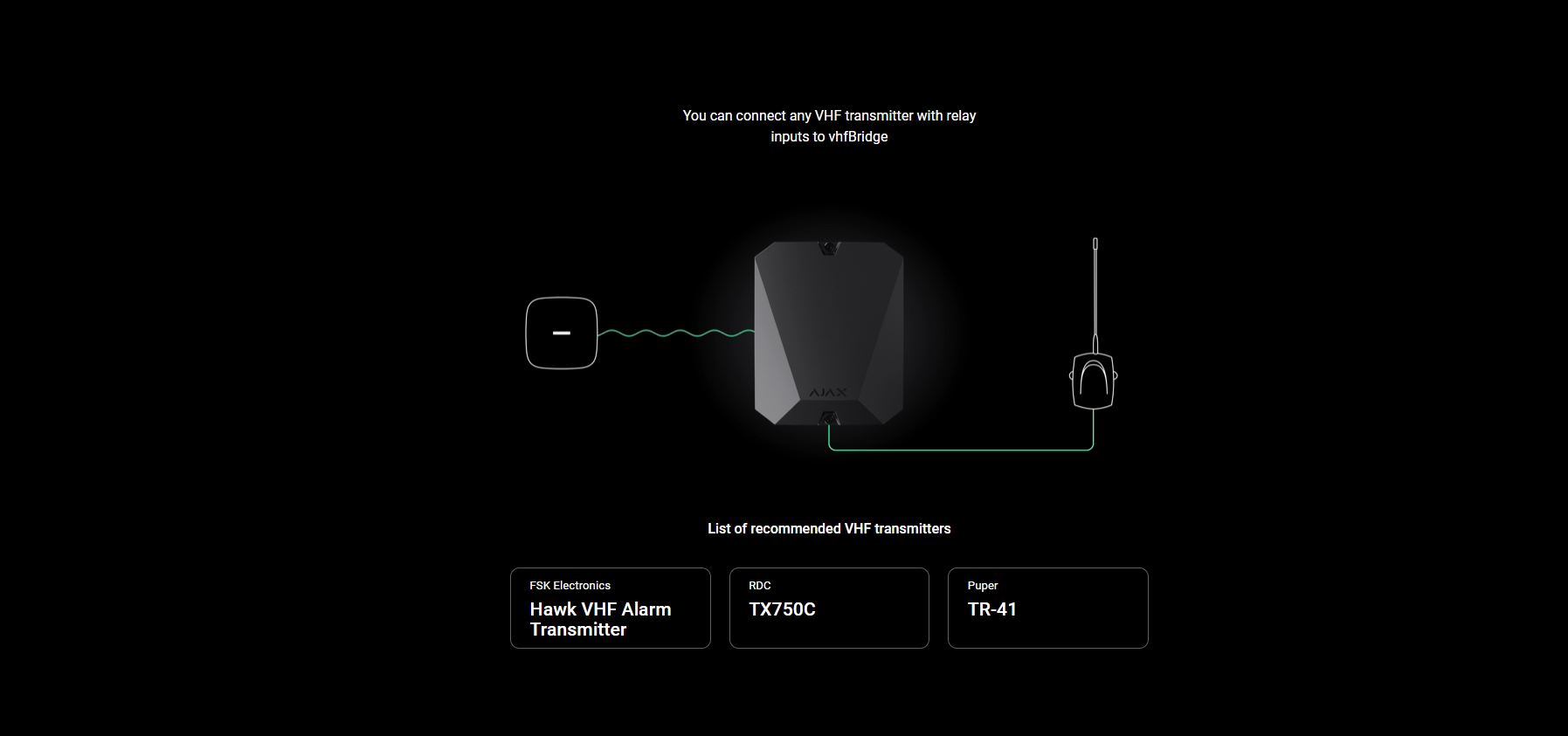

- Recommended VHF transmitters: Hawk VHF Alarm Transmitter from FSK Electronics / TX750C from RDC / TR-41 from Puper
- Compatible with Ajax range extenders: +
- Support for photo verification of alarms: No
- Primary power supply: 100–240 V, 50/60 Hz
- Backup power supply: 12 V DC, up to 75 hours of power for a transponder and a transmitter
- Recommended battery type: 12 V battery with a capacity of 4 Ah or 7 Ah / Backup battery is not included in the set
- VHF transmitter power: 12 V DC, 2 A
- Anti-sabotage: Protecting against forgery / Jamming notifications / Tampers against opening and removal / Backup battery
- Maximum radio signal power: ≤ 25 mW
- Protection class: IP50
- Operating temperature range: From –10°C to +40°C
- Operating humidity: Up to 75%
- Overall dimensions: 196 × 238 × 100 mm (with casing) / 145 × 89 × 51 mm (without casing)
- Weight: 840 g (with casing) / 165 g (without casing)
| Connection Type: | Wireless |
