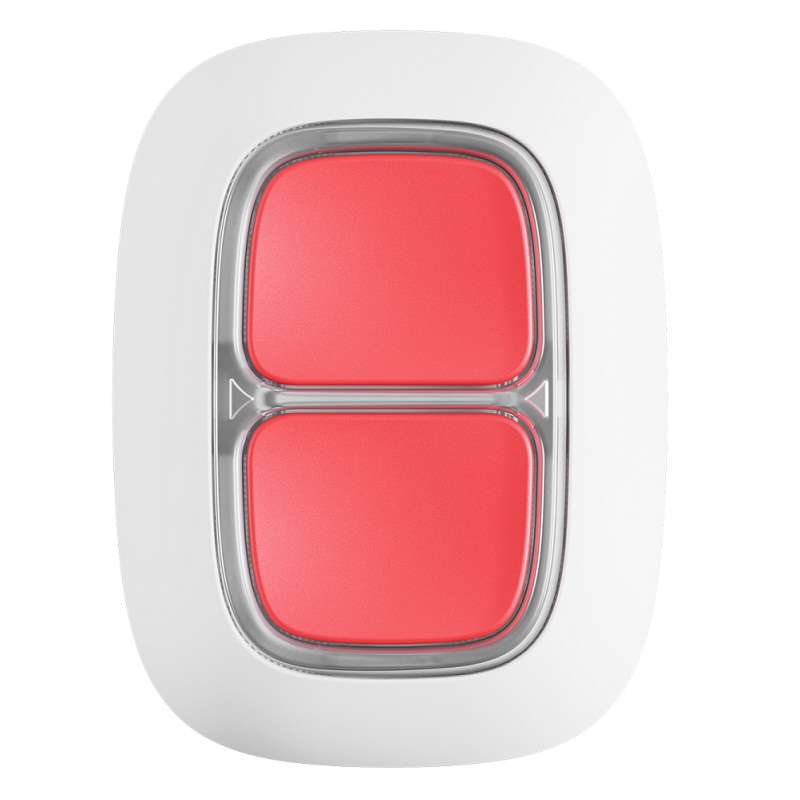

AJAX Wireless Double Button
Product code: 29390820 // MPN: 23003.79.WH1 // EAN: 0810031993871
DoubleButton supports confirmed alarms. This feature implies instructing users: what sequence of presses is required to generate a confirmed alarm condition. It gives a 100% guarantee that a hold-up alarm was raised intentionally and only by an authorized user
To activate the alarm, you must simultaneously press both buttons. They are stiff and parted by a plastic barrier. These measures eliminate false alarms when carrying DoubleButton in a pocket or bag
The hold-up device transmits a signal to the hub via Jeweller—a two-way radio protocol communicating at a range of up to 1300 meters. A flashing LED verifies the successful delivery of the DoubleButton alarm. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency, and when the air is jammed, it notifies users and a security company about the situation
DoubleButton meets the requirements of professional European security standards and can be used in both private and commercial properties. Wireless connectivity with the hub and long communication range gives freedom in placing and allows you to carry DoubleButton around
- Classification : Wireless hold-up device
- Compatibility : Operates with all Ajax hubs and range extenders (with OS Malevich 2.10)
- False alarm prevention : Yes
- Number of buttons : 2
- Alarm transmission : Not longer than 0,15 sec / Always active (does not require waking up to use)
- Jeweller radio technology : Communication range with a hub — up to 1300 m in an open area / Two-way communication / Operating frequencies — 868.0 - 868.6 or 868.7 – 869.2 MHz (depends on sales region) / Self-adjusting RF output power — up to 20 mW / Block encryption based on AES algorithm / Frequency hopping
- Power supply : CR2032 battery, 3 V / Up to 5 years
- Operating temperature range : From -10°C to +40°C
- Permissible humidity : Up to 75%
- Protection class : IP55
- Size : 47 × 35 × 16 mm
- Weight ; 17 g
- Warranty : Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty
| Connection Type: | Wireless |
